Jaguar Industrial Refrigerated Air Dryers: ED-200FC & ED-50FC
Raw compressed air leaves your compressor heavily saturated with water vapor and thermal heat. If left untreated, this moisture drops out inside your pipelines, causing automated cylinder failures, rusted pneumatic instrumentation, fabric staining, and ruined pharmaceutical or food batches.
The JAGUAR FC Series represents high-tier thermodynamic air treatment. Operating on a highly refined refrigeration loop, these units drop the temperature of incoming compressed air to force $99.9\%$ of water vapor to condense and discharge before the air can ever compromise your production line. Depending on your volumetric flow demands, Jaguar offers distinct capacities designed for complete pipeline protection:
Technical Comparison Matrix

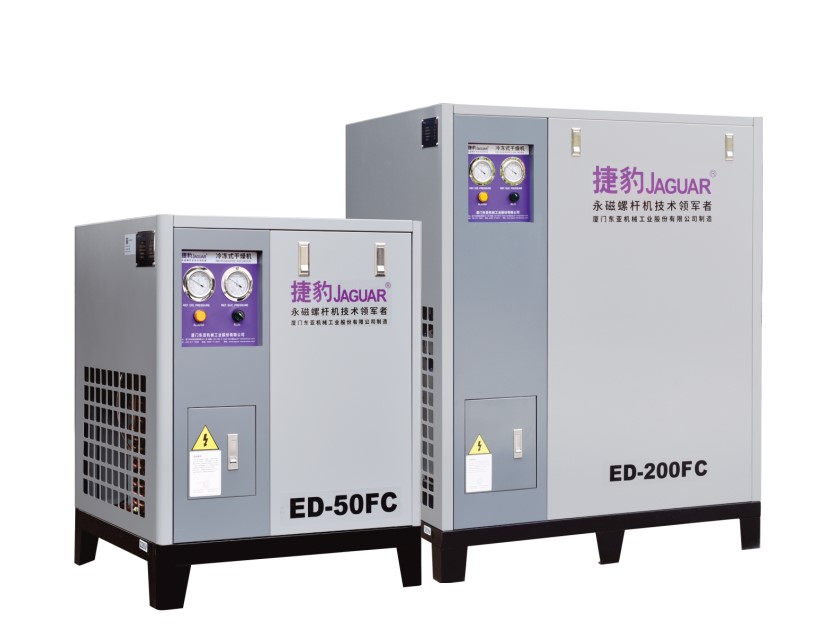

To help your engineering team choose the correct system footprint, here is how the heavy-industrial ED-200FC and mid-tier ED-50FC stack up side-by-side:
| Specification Parameter |
JAGUAR ED-50FC (Mid-Scale Core) |
JAGUAR ED-200FC (Heavy Industrial) |
| Compatible Compressor Rating |
40 HP to 50 HP (30 kW - 37.5 kW) |
150 HP to 200 HP (110 kW - 150 kW) |
| Air Processing Capacity |
7.0 $m^3/min$ ($245$ CFM) |
28.0 $m^3/min$ ($980$ CFM) |
| Power Requirements |
220V / 1-Phase / 50Hz |
380V - 415V / 3-Phase / 50Hz |
| Rated Power Consumption |
~1.38 kW |
Heavy-Duty (~3.8 kW+ Industrial Cycle) |
| Inlet Temperature Range |
5°C to 45°C |
Built for high-inlet industrial hot lines |
| Pressure Dew Point |
2°C to 10°C |
Stable Low dew point via Pre-cooling Regenerator |
| Core Condenser Build |
High-efficiency Copper Fin |
Enlarged Copper Fin (+15-20% surface area) |
| Drain Valve System |
Electronic Timed Drain (Anti-blocking) |
Heavy Industrial Multi-valve Collision Drain |
Matching the Machine to Your Factory Type
Jaguar ED-50FC: The Light-to-Medium Factory Standard
The ED-50FC is perfect for localized machinery clusters, medium workshops, and secondary production lines:
-
Garment Finishing & Cutting Hubs: Ensures pneumatic irons and automated fabric cutters get moisture-free air to eliminate water stains on textiles.
-
Plastic Injection Molding: Keeps pneumatic blow molds clean and completely dry to prevent surface pitting or structural defects in raw plastic products.
-
Small-Scale Food Packaging: Drives small automated sealing matrices without moisture forming pockets that could induce micro-organism or mold growth.
Jaguar ED-200FC: The Heavy Industrial Infrastructure Shield
The ED-200FC is built for large, centralized powerhouse rooms running 24/7 continuous operations:
-
Mass Spinning & Composite Textile Mills: Seamlessly processes massive volumes of air to run large grids of automated air-jet looms.
-
Bulk Pharmaceutical Formulations: Supplies continuous dry air for fluid-bed dryers, blister packing lines, and cleanrooms, where even tiny moisture droplets ruin batches.
-
Heavy Chemical & Material Processing: Operates across aggressive line environments, utilizing a 15-20% larger condenser surface area to handle punishing ambient conditions.
Professional System Installation Protocol (Our Process)
No matter the unit scale, our technical engineering crew uses an optimized layout strategy to integrate your dryer safely:
1.Strategic Buffer Air Receiver Placement:Phase 1.
The dryer is positioned directly downstream of your main storage receiver tank. The tank catches heavy condensation slugs first, ensuring the dryer’s evaporator doesn't drop efficiency.
2.3-Valve Industrial Bypass Manifold:Phase 2.
We fabricate a complete 3-valve manual bypass pipe network. This lets you isolate the dryer for routine element maintenance or filter swaps without shutting down your whole plant.
3.Dual Stage Inline Filtration Hookup:Phase 3.
We install an inline particulate pre-filter to grab residual oil droplets before the air cools, and a post-filter right after the dryer to block any remaining micro-particles.
4.Condensate Purge Configuration:Phase 4.
We mount and dial in the integrated electronic automatic drain valves, checking the anti-blocking pathways to guarantee hassle-free water clearing without losing line pressure.
5.Electrical Load & Refrigerant Testing:Phase 5.
We fire up the system under load, validating that low/high refrigerant pressures sit right on target and checking single or three-phase line draws for safe, efficient operation.
Why Source From Diganta Machinery Co.?
-
100% Genuine Imports: Every Jaguar ED-50FC and ED-200FC unit comes directly from the manufacturer with authentic serial plates and official backing.
-
Fully Stocked Dhaka Warehouse: We keep original spare parts, automatic timed drain kits, pressure switches, and filter elements ready to minimize downtime.
-
Industrial Engineering Crews: Our teams carry field experience troubleshooting complex pneumatic lines in high ambient summer humidity.
Frequently Asked Questions (FAQ)
Question: Do these dryers experience high internal pressure drops?
Ans: No. Both models are built with highly efficient gas-liquid heat exchangers that keep total pressure loss exceptionally low (typically under 0.035 Mpa / 3.5 Psig), preserving your energy costs.
Question: What is the main difference in maintaining an ED-200FC versus an ED-50FC?
Ans: The ED-50FC runs on a simpler single-phase circuit, needing basic exterior copper-fin dusting and drain seal flushes. The ED-200FC utilizes an advanced pre-cooling regenerator loop and three-phase power, requiring periodic system parameter verification by a technician.
Request a Custom Air-Treatment System Quote
Unsure whether the ED-50FC or heavy-duty ED-200FC fits your line configuration? Contact Diganta Machinery Co. today for an expert layout evaluation, performance scoping, and the best current market pricing.
-
